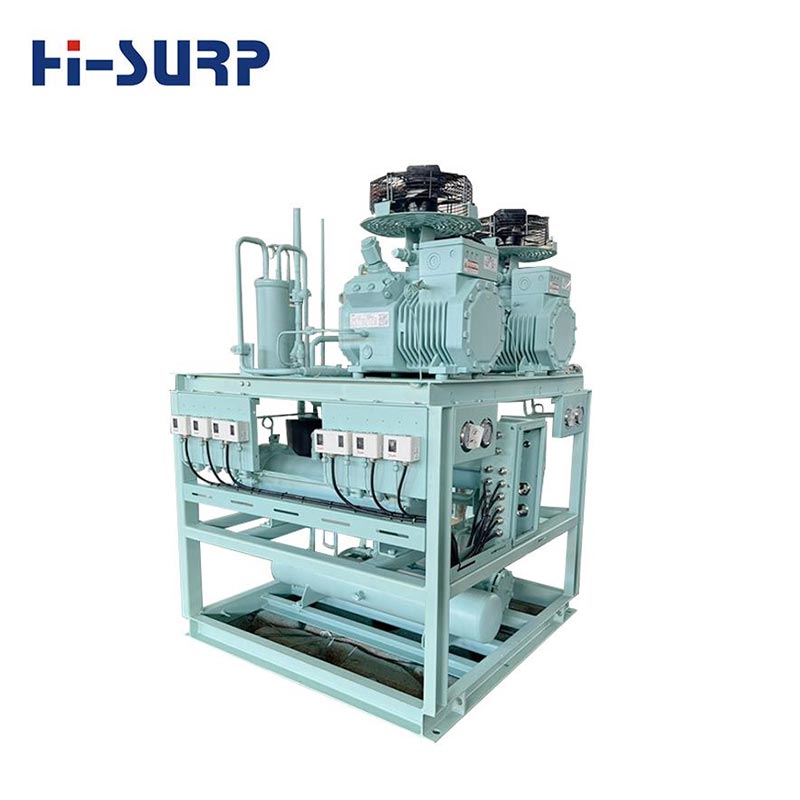

Marinus Ahu

HISURP est Sinarum opificem oblatio- rum solutionum Customised Marine AHU cum industria multi-fontis calefactionis/refrigationis, corrosionis repugnantis structurae C5-M, ac vibrationis probationis designandi ambitus navis durae. Commoda clavis comprehendunt ±0.5℃ subtilitatem temperantiae, RS485 magna vigilantia, et 1000h salis aspergine resistentia, certa HVAC effectio applicationum marinorum et procurationis mole procurans.

Marine AHU Caput Features

Multi fons calefaciendi et refrigerandi configurationem, industriam efficientem

Sustinet aqua frigida (aqua frigida media), expansio directa (DX cum constructo-in compressore) et calor recuperatio functiones, adhibendis vastum calorem a principali machinae cylindrici liner pro energia salutaris calefactionis. Flexibile electio calefaciendi et refrigerandi fontes diversis navitatis conformationibus aptat navis.

Designatur specialiter ad ambitus marinos, vibrationes repugnantes et corrosio-resistentes

Vibratio repugnans et consilium anti-manum (basi vibrationis-dampentes nexum + flexibilem) accommodat vibrationi, volumine, ac picis conditiones in nave navigationis; gradus marinus anti-corrosion efficiens, aspergine salis ≥ 1000 horas; clavem tium fiunt de 316L intemerata ferro offerendo praeclara corrosione resistentia. Superior Subtilitas Imperium, Solatium et Energy Excepto: Microcomputator Moderator Modbus/RS485 communicationem sustinet et cum iungi potest. Integrated Ship Management System (IAS); accuratio temperaturae temperantiae est ±0,5℃, humiditas moderatio accuratio ±5% est; assequendum accurata commensuratio de Camerae ambitu; ad libitum EC fans, salvis plusquam XXX% in industria.

Foedus Structurae et Commodi Sustentacionem

Modularis designatio, magnitudo compacta et plures modi institutiones inclusae horizontales, verticales, laquearia, conscendit; accommodans angustiis Cameram navis; facilis ad mundum colum + accessum ostium design + sui diagnosis of delicta simpliciorem sustentationem et downtime minuendi.

Application missiones

Ocean-iens mercator Naves: Cantavit plagas vivas, popinae, et loca hospitii in navibus onerariis, continentibus naves, et onerarias oleum.
Navis et viatoribus Yacht: vector gurgustium et areas publicas luxu latas, ferries, et lecythus navium.
Suboles Platforms: quarteria viva et gazofilacia moderari in diametris et olei suggestis productio.
Ipsum vasa: Cantavit gurgustium in tugboatibus, dredgers, et vasis tibialibus.
Naves longae: systemata aeris condicionibus ergastulis in navibus longis et copia navium.

Marine AHU Specifications Technical

Categoria	Parameter	Specification
Basic Information	Airflow dolor	1,000 ~ 50,000 m³/h
	Capacitas refrigeratio	5KW ~ 300KW
	Calefaciens capacitatem	3KW ~ 200KW
Structure	Casing Material	Galvanised chalybe + marinus-gradus coating / Sine ferro
Structure	Aditus Door	Accessum ostium CARDINATUS cum observatione fenestra
Fan	Fan Type	Retro-inclinata fan centrifuga / EC fan
	Externi Static Pressure (ESP)	100 ~ 800 Pa (commodus) ;
	sonitus Level	≤55 ~ 70 dB(A) ;
Filtration	Pre-colum	G3 / G4
	Medium Filter	F7/F8/F9
	HEPA Filter	H13/H14 (libitum);
Calor Exchanger	Type	Aluminium cupreum-aluminium / Copper-nickel mixtura / Titanium alloy
Calor Exchanger	Fin Type	Hydrophilic amavit fin
Refrigerium & Heating	Aqua frigida	7℃ diverticulum / 12℃ exitum
	Aqua calida	60℃ diverticulum / 50℃ exitum
	Direct Expansion (DX)	R134a/ R410A/R407C
	Calor Recuperatio	Engine iaccam aqua (60-90℃)
	Electric Heater	PTC tellus (libitum)
Humidifier	Type	Electrode vapor humidifier
Humidifier	capacitas	5 ~ 100 kg/h (libitum)
Imperium	Potestas Supple	220V/1Ph/50Hz vel 380V/3Ph/50Hz (ad libitum 60Hz)
	Controller	Microprocessor moderatoris / PLC + tactus screen
	Communicationis	Modbus RTU / RS485
	Temp. Imperium Range	18℃ ~ 30℃
	Temp. Sagacitas	±0.5℃
	Umor Accuracy	±5%
	Praesidium Rating	IP44/IP54
Anti-Vibratio & Anti-Corrosion	Vibratio solitudo	Vibrationis absorbens basim + nexum flexibilem
	inclinatio Adaptability	15° calcaneum, 5° trim
	Sal Spray Test	≥1,000 horas
	Corrosio Praesidium	C5-M / Marinus gradus
Dimensiones & pondus	Dimensiones	nativus secundum editi
Dimensiones & pondus	Net Pondus	200 ~ 3,000 kg
Certification	Salus Certification	CE / RoHS / ISO9001
Certification	Ordo Societatis	DNV / BV / ABS / CCS / LR (ad libitum)

Post-Sales Service

Comprehensivum post venditiones subsidium pro Marine AHU praebemus:

1. XVIII mensis extenditur post-sales subsidium (standard warantia XII mensibus), anxietas-liberum usum
2. Online remotis ducibus: Technicis cito adiuvaret in fermentum per video et text/images
3. Installation support: Providet institutionem directionis videos et text/image instructiones; on-site ductu officium est ad libitum
4. Partes praestabunt: Sufficientes stirpis vulgo adhibitae partes pro celeriter partus
5. Self-diagnosis: Moderator ostendit culpam codes for quick problem location
6. Servitii responsio: 24-hora responsio technica et 48 horarum solutio remotior praescripto.

Testimonia

CE, RoHS, ISO9001 Certification
Societas libitum Classificationis certificationum (DNV, BV, ABS, CCS, LR)

Qualitas Imperium:

Rudem materiam inspectionis advenientis; sui ipsius inspectio, mutua inspectio et propriae inspectionis in productione.
Quaelibet pars instrumentorum comprehensivam patitur probationem inter caliditatem, asperitatem, vibrationem, faciem, lacus, et salutem electricam.
Unicum apparatum Vide numerum ad plenum traceability.

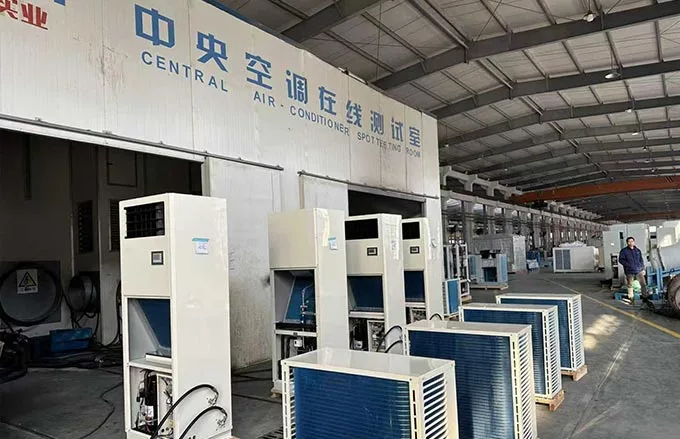

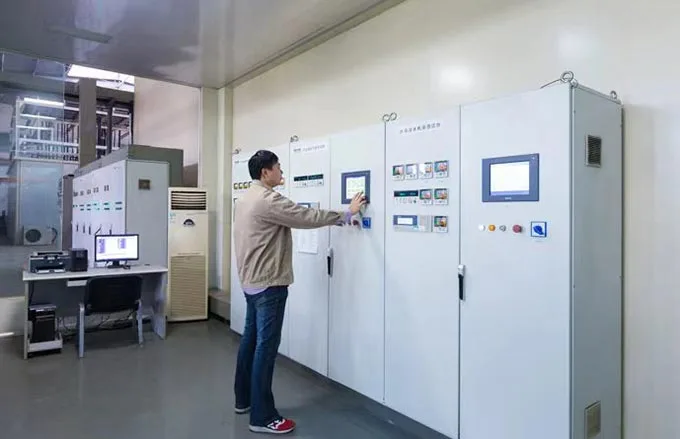

Test Capabilities:

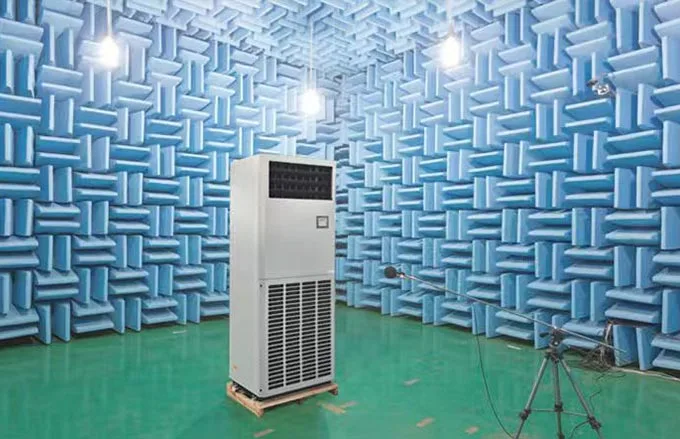

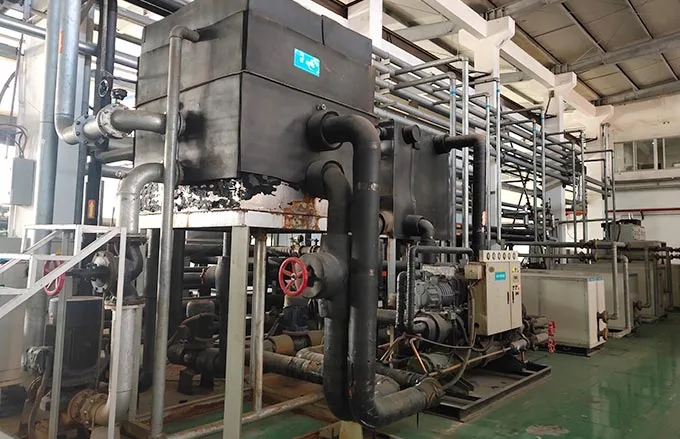

Enthalpy differentia laboratorium, strepitus probatio locus, sal imbre test cubiculum, vibratio test scamnum, scamnum test inclinatio

: marinus aer tractans unitatem, marinus AHU, navis HVAC systema
